Product Details:
|
| Product Features: | Horizontal S Type Turbine | Type: | Kaplan Hydro Turbine |
|---|---|---|---|
| Water Head: | 2m-20m | Installation Capacity: | 0.1MW -- 5MW |
| Rotor Diameter: | <2 Meters | Cooling System: | Water Cooled |
| Efficiency: | 95% | Blades Material: | Stainless Steel (0Cr13Ni4Mo) |
| Highlight: | 5MW horizontal Kaplan Hydro Turbine,0.1MW horizontal Kaplan Hydro Turbine,5MW Kaplan Hydro Turbine |
||

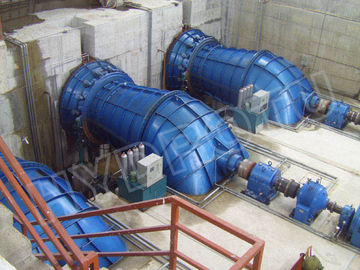

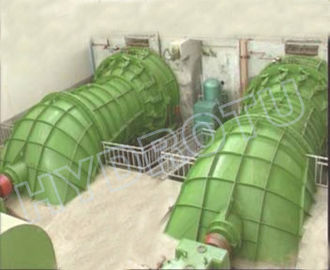

The S type turbine is also known as axial-shaft tubular turbine, is a type of turbine in which the water turbine is installed within the water flow passage and the water is discharged downstream through a curved inlet pipe. Due to the fact that the longitudinal section of the flow passage and the turbine shaft is in the shape of an "S". This type of water turbine inlet is very sensitive to flow irregularities at low flow rates, and the additional disturbance to the main shaft caused by the water flow rapidly leaving the turbine is relatively large, so this type of pumped turbine unit is usually used for water heads of 6 meters or above.
The S type turbine unit can be classified into front axial-shaft, rear axial-shaft, and oblique axial-shaft according to the arrangement of the main shaft. One of the main features of the axial-shaft pumped turbine unit is that it has no penstock and bent tailrace water pipe compared to the axial-flow turbine, and the civil engineering workload is small. The generator is placed in a pit outside the flow passage and connected to the water turbine inside the flow passage through a shaft that passes through the wall of the flow passage pipe.
One of the key features of the S Type Turbine is its blades material, which is made of high-quality stainless steel (0Cr13Ni4Mo). This ensures durability and resistance to corrosion, making it ideal for long-term use in hydroelectric power plants.
The S Type Turbine is also equipped with a Hydraulic speed governor, which ensures that the turbine operates at optimal speed and frequency.
The S Type Turbine has a wide installation capacity ranging from 0.1MW to 5MW. This makes it suitable for a range of power plant sizes, from small-scale operations to larger industrial facilities.When the water head is very low, the turbine speed is low and the unit capacity is not large, can select the s type hydro turbine.
The S Type Turbine has several advantages over other types of turbines. It offers better stability and requires less maintenance compared to other vertical turbines. It also has a smaller footprint, making it easier to install and operate in tight spaces.
With its superior performance and reliability, the S Type Turbine is an excellent choice for power plant operators looking for a dependable hydro turbine generator. Its innovative design, coupled with its high-quality materials and components, make it a cost-effective solution for power generation needs.
The S type hydro turbine is perfect for small hydropower stations and is highly adaptable to different water head ranges between 5m-20m.

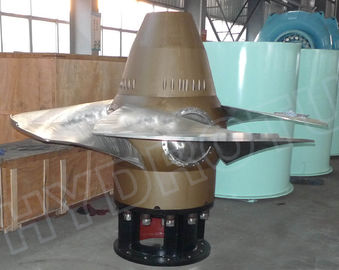

It uses a Propeller Turbine Runner that is highly durable and is designed to last for many years, making it an ideal long-term investment for power generation.
The Hydro Turbine Generator used in the S type hydro turbine is highly efficient and is designed to convert the kinetic energy of water into electrical energy at Low water head and large water flow project. This generator is capable of producing electricity ranging from 0.1MW to 5MW, making it suitable for a wide range of power generation applications.
HYDROTU's S type hydro turbine is highly versatile and can be used in various scenarios, including small hydropower stations, irrigation systems, and water supply systems. It is a perfect fit for areas where water resources are abundant but electricity is scarce.
The S type hydro turbine comes with an export standard packaging, which includes a wooden case to ensure that the product arrives safely at its destination. The delivery time for this product is negotiable, and the payment terms are L/C. The minimum order quantity for the S type hydro turbine is one, and the price is negotiable.
Our customization services allow you to tailor the HYDROTU S type hydro turbine to meet your specific needs. This includes customizing the Hydro Turbine Runner, Kaplan Turbine Generator, and other Hydro Turbine Parts to meet your exact specifications. Contact us today to learn more about how we can help you get the most out of your hydro power generation project.
If you have a hydropower project, you should send us your project water Head, rated flow, unit number etc basic parameter, then we can give you a primary design and price. Please download the "Enquiry sheet.doc" and fill in the sheet,send to us by email.
The S Type Turbine product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our dedicated team of experts is available to assist you with any questions or issues you may encounter, including:
We also offer customized service packages tailored to your specific needs, including remote monitoring and diagnostics, on-site support, and performance optimization. Contact us to learn more about our product technical support and services.
